Shelf Pin Jig and Hinge Jig
Shelf pins drilled wrong don't hold shelves level. Hinges drilled wrong don't close flush.
Both are repetitive drilling operations where the result depends entirely on keeping a consistent spacing and a perpendicular hole. A jig that positions itself and guides the bit is the difference between hardware that works and hardware you adjust twice a year. The Shelf Pin Jig and Hinge Jig handles both — one tool for the two most common hardware-drilling jobs in cabinet and furniture work.
What it does
Shelf Pin Function

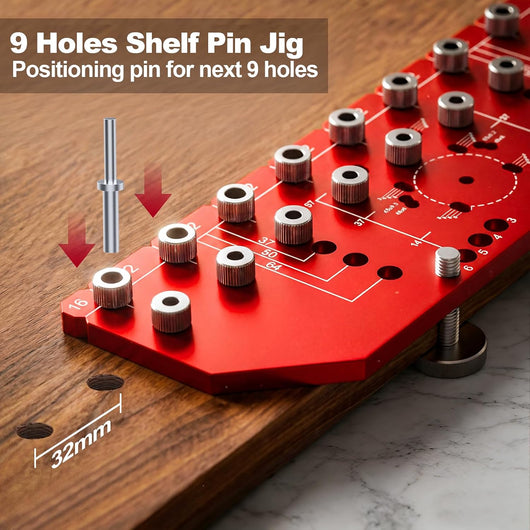

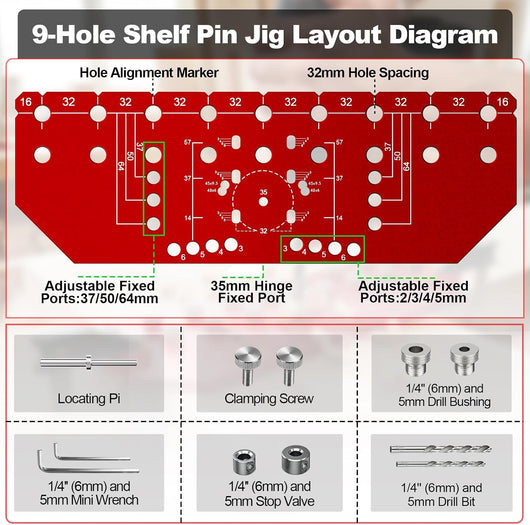

- Fixed pin spacing — produces the standard 32mm shelf-pin spacing used in European-system cabinet construction; holes line up across cabinet sides automatically

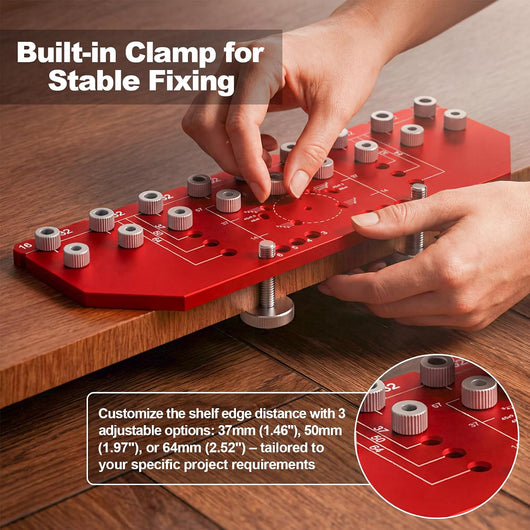

- Edge registration — indexes off the cabinet side edge for consistent hole-to-edge distance on every panel without re-measuring
- Depth stop — limits the drill bit to the correct shelf pin depth; won't drill through the panel side
Hinge Function
- Hinge cup position — positions the 35mm Forstner bit for European concealed hinges at the correct distance from the door edge and door top/bottom
- Single setup per door — register the jig once per door edge; drill both hinges from the same reference without moving the fence

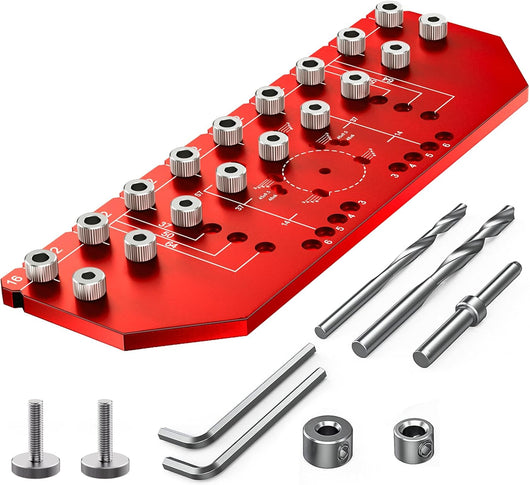

How it's built
- Aluminum alloy body — dimensionally stable through temperature and humidity changes that affect plastic jigs

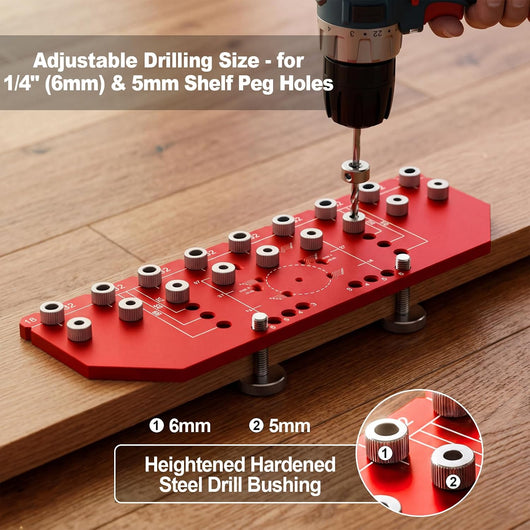

- Hardened drill bushings — the bit runs through steel, not the jig body, so the hole position stays accurate across a full cabinet job's worth of holes
- Flip stops — quickly position for top or bottom hinge without re-measuring from scratch
Who it's for

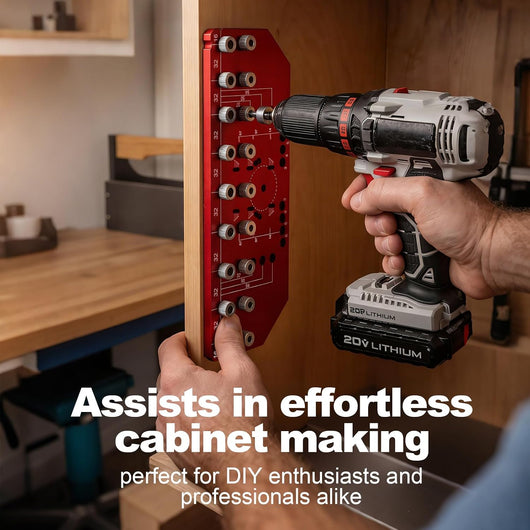

Cabinet makers building face-frame and frameless cabinets, furniture builders fitting concealed hinges on doors and drawers, and shop owners doing production runs where shelf pin rows need to be consistent across 20 identical panel sides.
Shelf pins level. Hinges flush. Both done right the first time.
